Sphere 3D Model

sphere_mesh(
  position = c(0, 0, 0),
  scale = c(1, 1, 1),
  angle = c(0, 0, 0),
  pivot_point = c(0, 0, 0),
  order_rotation = c(1, 2, 3),
  radius = 1,
  low_poly = FALSE,
  material = material_list()
)

Arguments

position

Default `c(0,0,0)`. Position of the mesh.

scale

Default `c(1,1,1)`. Scale of the mesh. Can also be a single numeric value scaling all axes uniformly.

angle

Default `c(0,0,0)`. Angle to rotate the mesh.

pivot_point

Default `c(0,0,0)`. Point around which to rotate the mesh.

order_rotation

Default `c(1,2,3)`. Order to rotate the axes.

radius

Default `1`. Radius of the sphere.

low_poly

Default `FALSE`. If `TRUE`, will use a low-poly sphere.

material

Default `material_list()` (default values). Specify the material of the object.

Value

List describing the mesh.

Examples

# \dontshow{
options("cores"=1)
# }

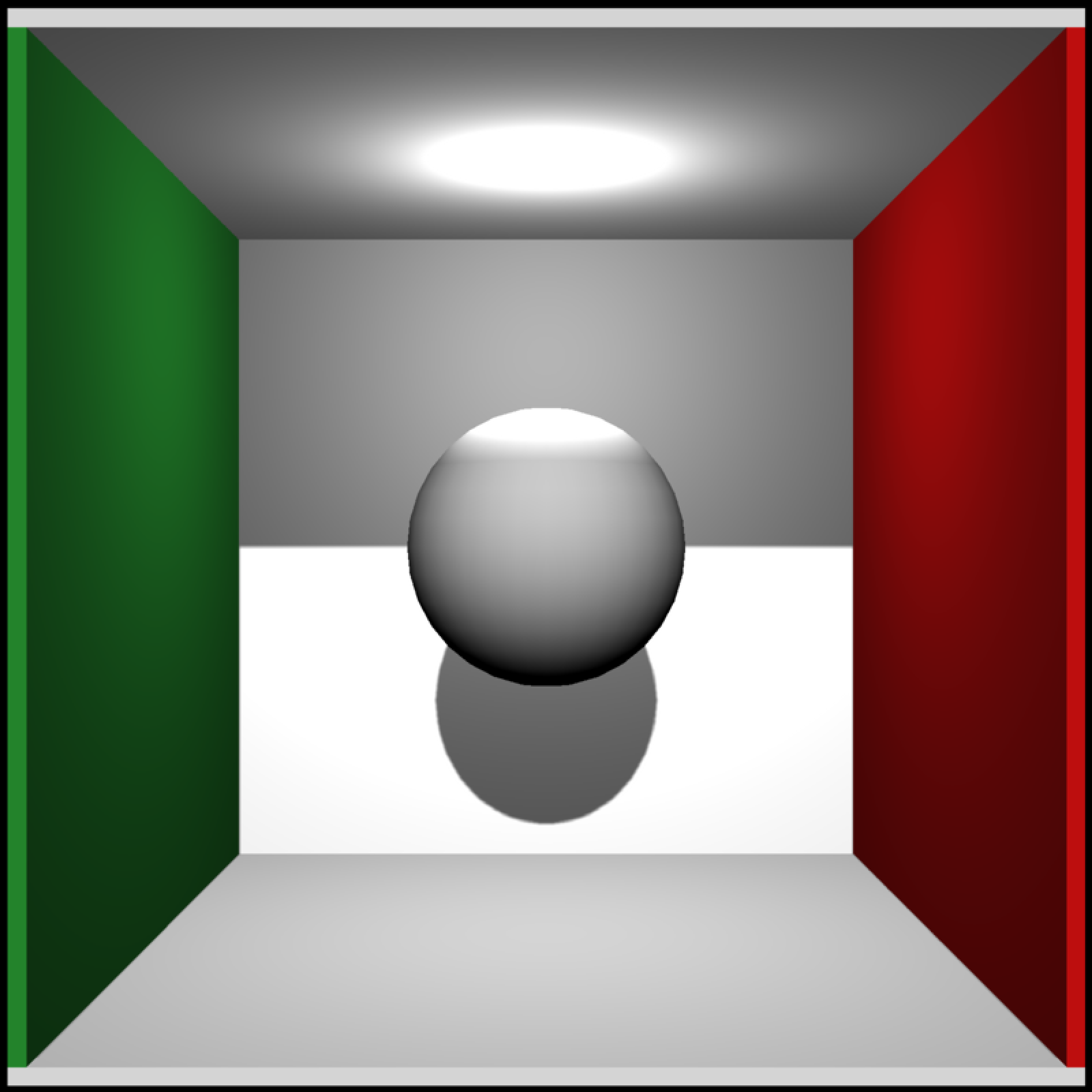

#Generate a sphere in the cornell box.
# \donttest{
generate_cornell_mesh() %>%
  add_shape(sphere_mesh(position = c(555/2, 555/2, 555/2), radius = 100)) %>%
  rasterize_scene(light_info = directional_light(c(0,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }

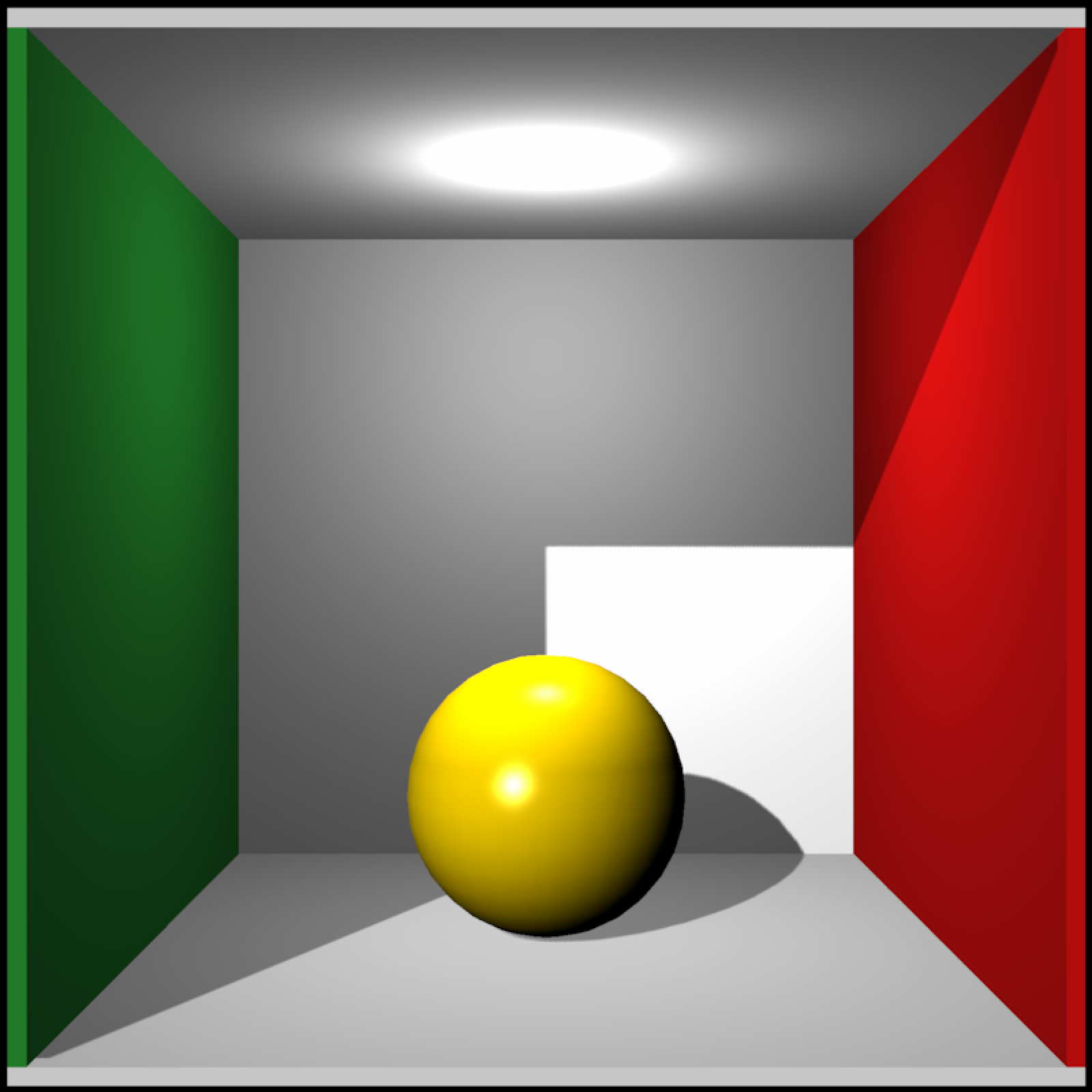

#Generate a shiny sphere in the cornell box
# \donttest{
generate_cornell_mesh() %>%
  add_shape(sphere_mesh(position = c(555/2, 100, 555/2), radius = 100,
                    material = material_list(diffuse = "gold",type="phong"))) %>%
  rasterize_scene(light_info = directional_light(c(0.5,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }

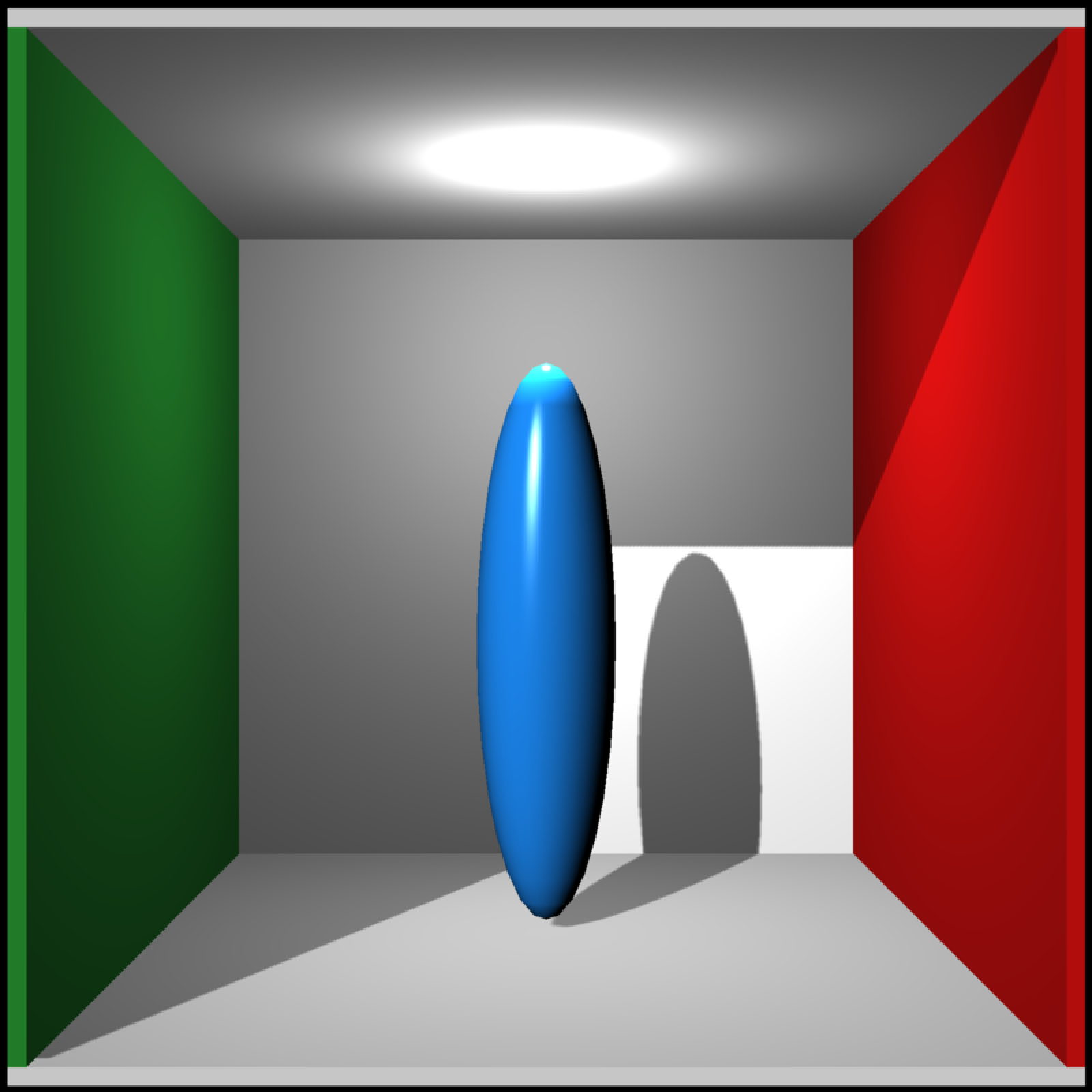

#Generate an ellipsoid in the cornell box
# \donttest{
generate_cornell_mesh() %>%
  add_shape(sphere_mesh(position = c(555/2, 210, 555/2), radius = 100,
                        angle=c(0,30,0), scale = c(0.5,2,0.5),
                        material = material_list(diffuse = "dodgerblue",type="phong"))) %>%
  rasterize_scene(light_info = directional_light(c(0.5,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }
