Segment 3D Model

segment_mesh(
  start = c(0, -1, 0),
  end = c(0, 1, 0),
  radius = 0.5,
  direction = NA,
  from_center = TRUE,
  square = FALSE,
  material = material_list()
)

Arguments

start

Default `c(0, 0, 0)`. Base of the segment, specifying `x`, `y`, `z`.

end

Default `c(0, 1, 0)`. End of the segment, specifying `x`, `y`, `z`.

radius

Default `0.5`. Radius of the cylinder.

direction

Default `NA`. Alternative to `start` and `end`, specify the direction (via a length-3 vector) of the arrow. Arrow will be centered at `start`, and the length will be determined by the magnitude of the direction vector.

from_center

Default `TRUE`. If orientation specified via `direction`, setting this argument to `FALSE` will make `start` specify the bottom of the cone, instead of the middle.

square

Default `FALSE`. If `TRUE`, will use a square instead of a circle for the cylinder.

material

Default `material_list()` (default values). Specify the material of the object.

Value

List describing the mesh.

Examples

# \dontshow{
options("cores"=1)
# }

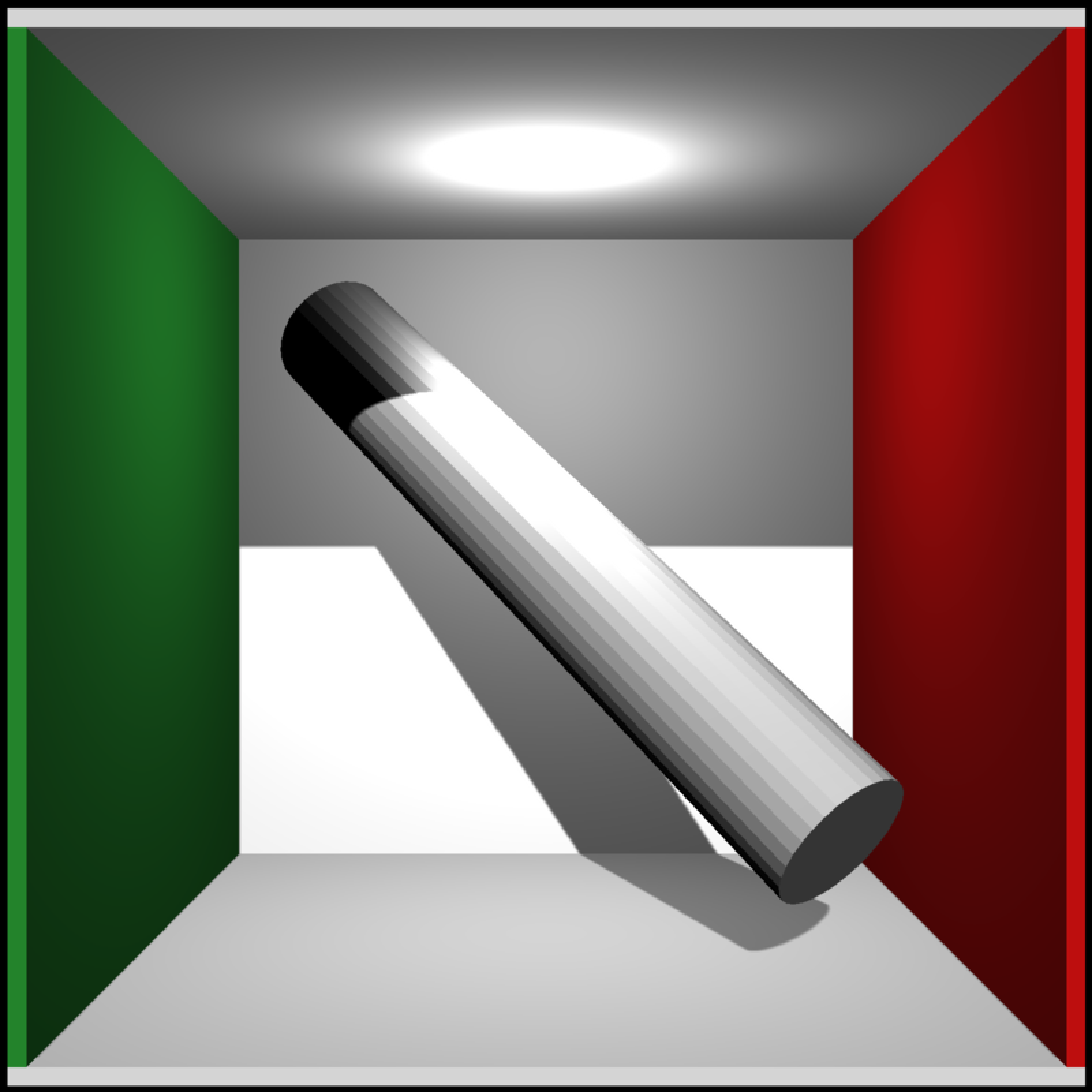

#Generate a segment in the cornell box.
# \donttest{
generate_cornell_mesh() %>%
  add_shape(segment_mesh(start = c(100, 100, 100), end = c(455, 455, 455), radius = 50)) %>%
  rasterize_scene(light_info = directional_light(c(0,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }

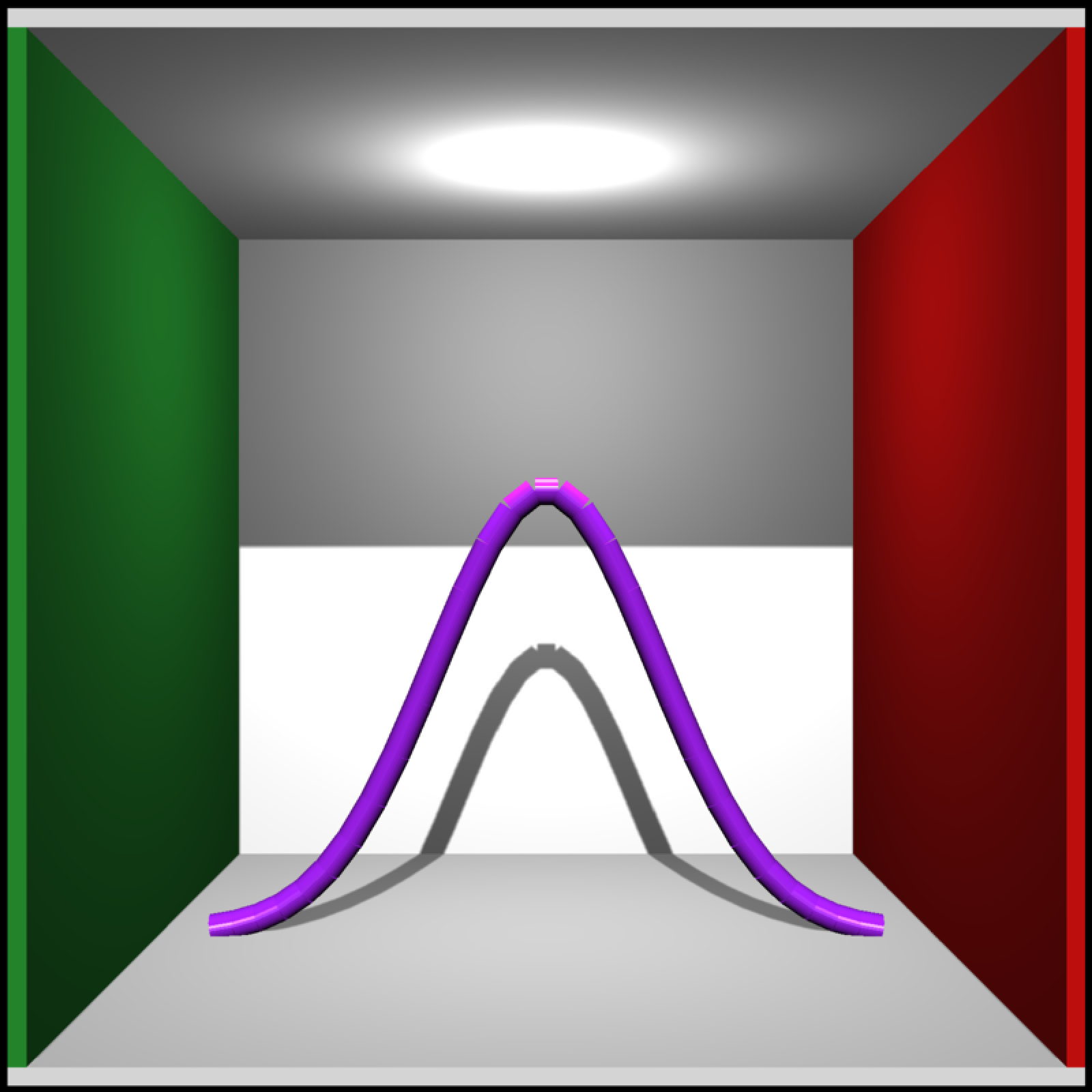

# Draw a line graph representing a normal distribution, but with metal:
xvals = seq(-3, 3, length.out = 30)
yvals = dnorm(xvals)

scene_list = list()
for(i in 1:(length(xvals) - 1)) {
  scene_list = add_shape(scene_list,
                         segment_mesh(start = c(555/2 + xvals[i] * 80, yvals[i] * 800, 555/2),
                            end = c(555/2 + xvals[i + 1] * 80, yvals[i + 1] * 800, 555/2),
                            radius = 10,
                            material = material_list(diffuse="purple", type="phong")))
}
# \donttest{
generate_cornell_mesh() %>%
  add_shape(scene_list) %>%
  rasterize_scene(light_info = directional_light(c(0,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }

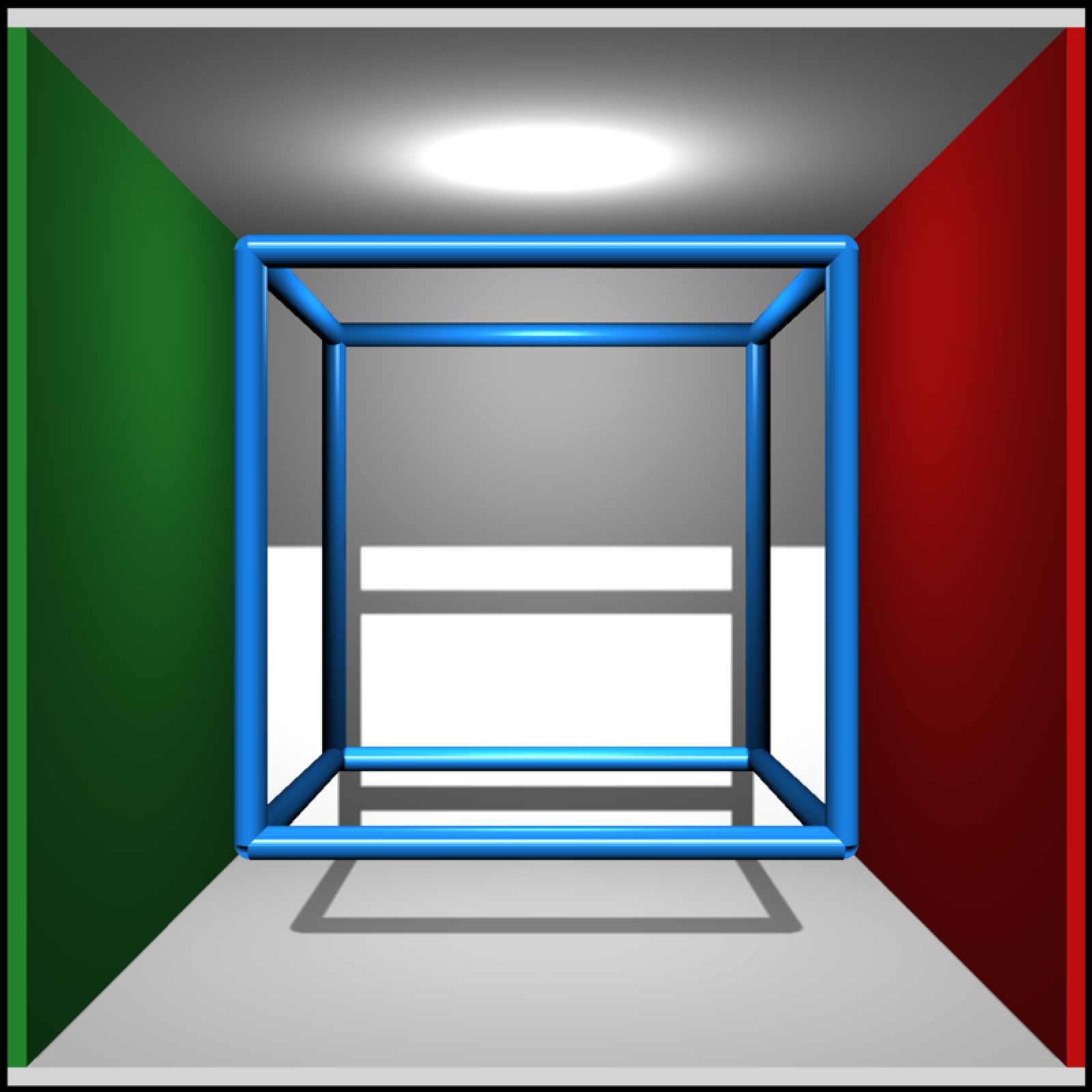

#Draw the outline of a cube:

cube_outline = segment_mesh(start = c(100, 100, 100), end = c(100, 100, 455), radius = 10) %>%
  add_shape(segment_mesh(start = c(100, 100, 100), end = c(100, 455, 100), radius = 10)) %>%
  add_shape(segment_mesh(start = c(100, 100, 100), end = c(455, 100, 100), radius = 10)) %>%
  add_shape(segment_mesh(start = c(100, 100, 455), end = c(100, 455, 455), radius = 10)) %>%
  add_shape(segment_mesh(start = c(100, 100, 455), end = c(455, 100, 455), radius = 10)) %>%
  add_shape(segment_mesh(start = c(100, 455, 455), end = c(100, 455, 100), radius = 10)) %>%
  add_shape(segment_mesh(start = c(100, 455, 455), end = c(455, 455, 455), radius = 10)) %>%
  add_shape(segment_mesh(start = c(455, 455, 100), end = c(455, 100, 100), radius = 10)) %>%
  add_shape(segment_mesh(start = c(455, 455, 100), end = c(455, 455, 455), radius = 10)) %>%
  add_shape(segment_mesh(start = c(455, 100, 100), end = c(455, 100, 455), radius = 10)) %>%
  add_shape(segment_mesh(start = c(455, 100, 455), end = c(455, 455, 455), radius = 10)) %>%
  add_shape(segment_mesh(start = c(100, 455, 100), end = c(455, 455, 100), radius = 10))

# \donttest{
generate_cornell_mesh() %>%
  add_shape(set_material(cube_outline,diffuse="dodgerblue",type="phong")) %>%
  rasterize_scene(light_info = directional_light(c(0,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }

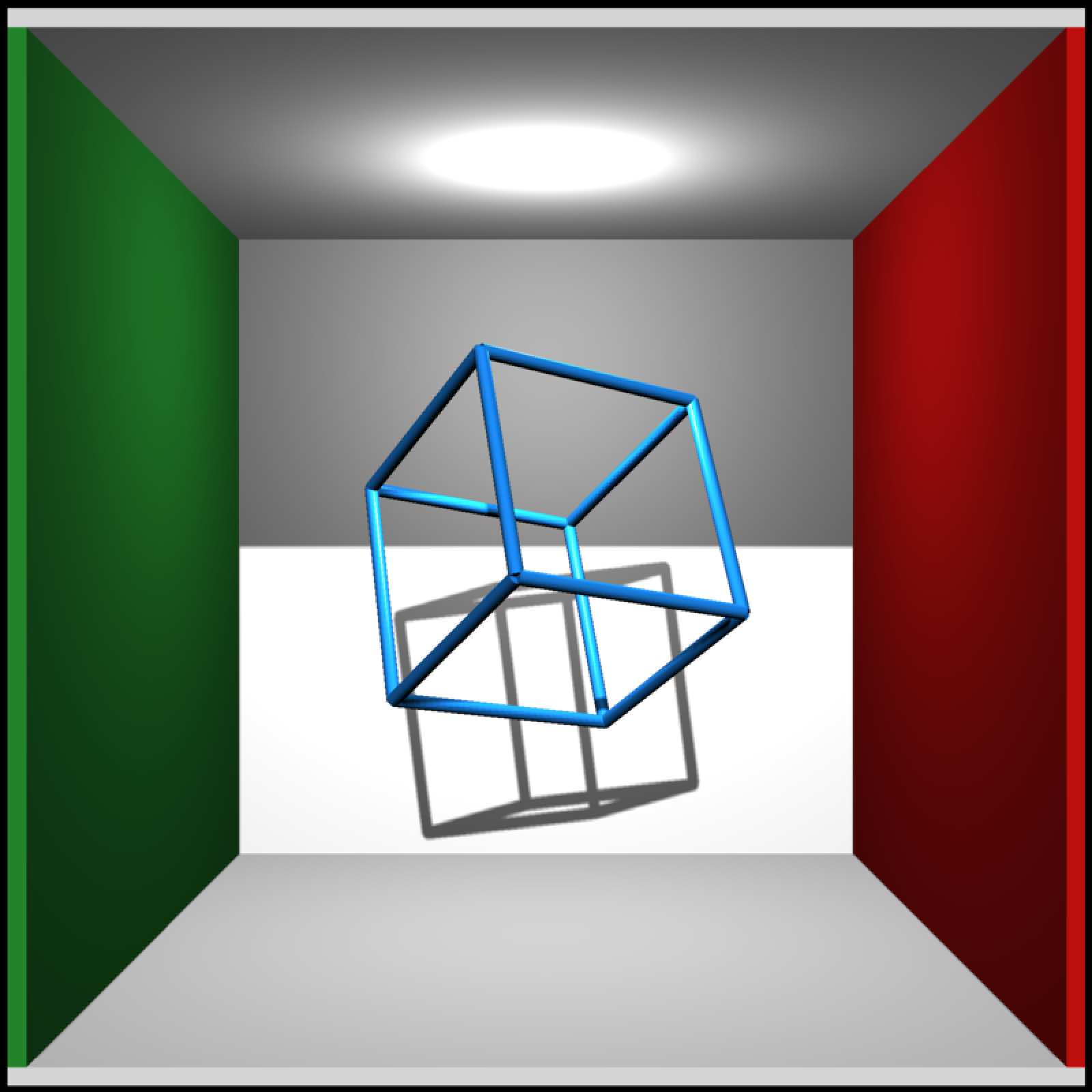

#Shrink and rotate the cube
# \donttest{
generate_cornell_mesh() %>%
  add_shape(
    scale_mesh(rotate_mesh(set_material(cube_outline,diffuse="dodgerblue",type="phong"),
                angle=c(45,45,45), pivot_point=c(555/2,555/2,555/2)),0.5,
                center=c(555/2,555/2,555/2))) %>%
  rasterize_scene(light_info = directional_light(c(0,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }
