Cone 3D Model

cone_mesh(
  start = c(0, 0, 0),
  end = c(0, 1, 0),
  radius = 0.5,
  direction = NA,
  from_center = FALSE,
  material = material_list()
)

Arguments

start

Default `c(0, 0, 0)`. Base of the cone, specifying `x`, `y`, `z`.

end

Default `c(0, 1, 0)`. Tip of the cone, specifying `x`, `y`, `z`.

radius

Default `1`. Radius of the bottom of the cone.

direction

Default `NA`. Alternative to `start` and `end`, specify the direction (via a length-3 vector) of the cone. Cone will be centered at `start`, and the length will be determined by the magnitude of the direction vector.

from_center

Default `TRUE`. If orientation specified via `direction`, setting this argument to `FALSE` will make `start` specify the bottom of the cone, instead of the middle.

material

Default `material_list()` (default values). Specify the material of the object.

Value

List describing the mesh.

Examples

# \dontshow{
options("cores"=1)
# }

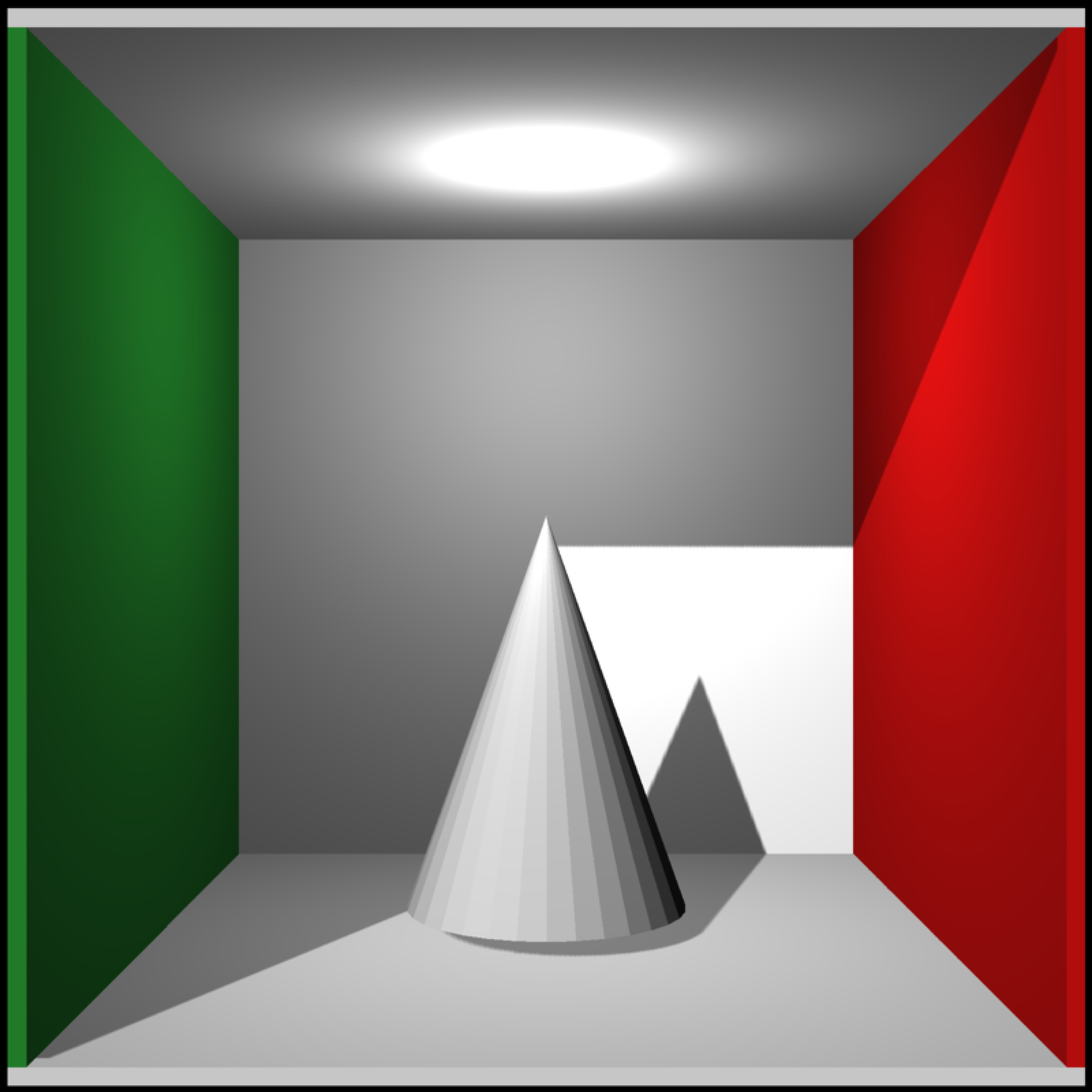

#Generate a cone
# \donttest{
generate_cornell_mesh() %>%
  add_shape(cone_mesh(start = c(555/2, 20, 555/2), end = c(555/2, 300, 555/2),
                      radius = 100)) %>%
  rasterize_scene(light_info = directional_light(c(0.5,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }

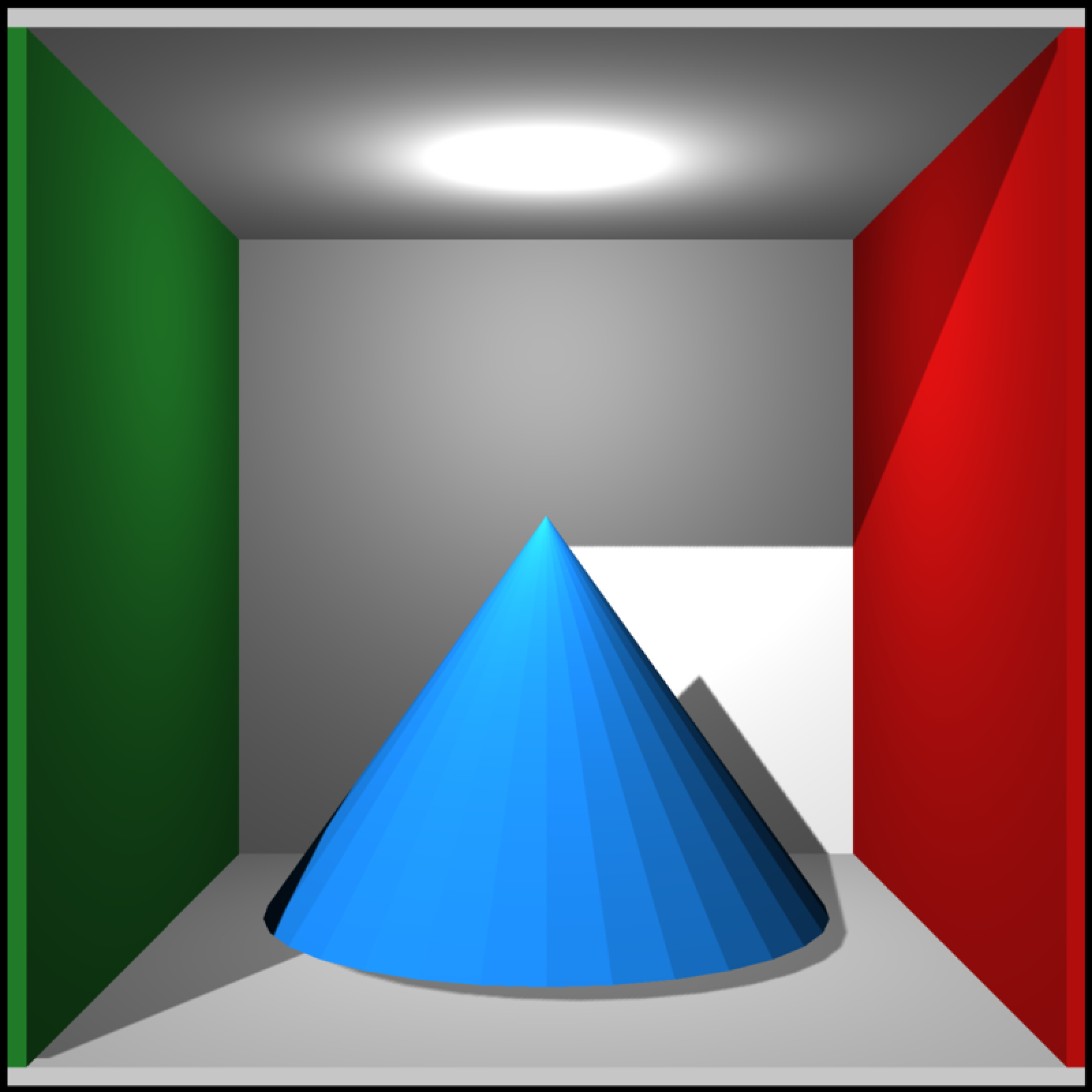

#Generate a blue cone with a wide base
# \donttest{
generate_cornell_mesh() %>%
  add_shape(cone_mesh(start = c(555/2, 20, 555/2), end = c(555/2, 300, 555/2), radius=200,
                      material = material_list(diffuse="dodgerblue"))) %>%
  rasterize_scene(light_info = directional_light(c(0.5,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }

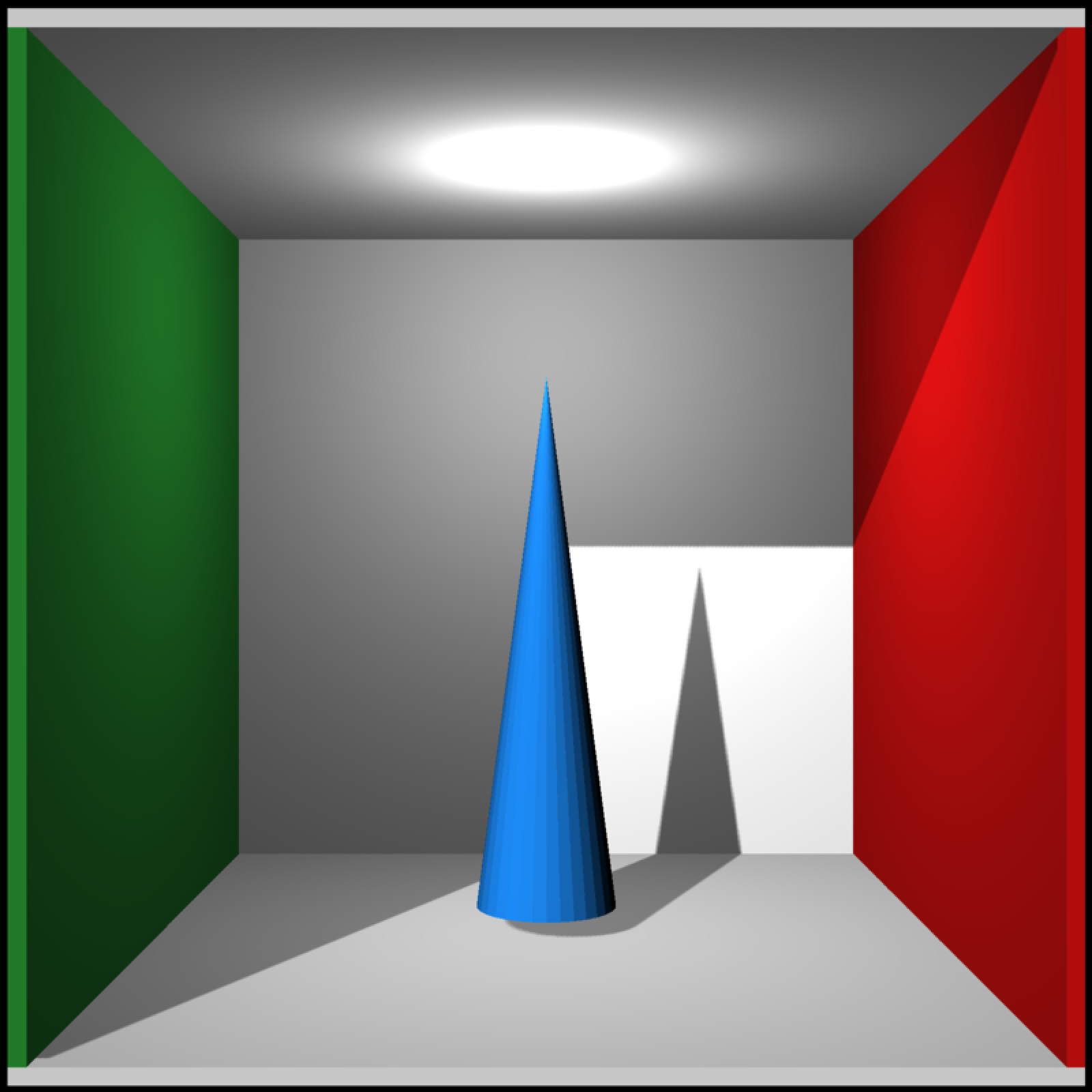

#Generate a long, thin cone
# \donttest{
generate_cornell_mesh() %>%
  add_shape(cone_mesh(start = c(555/2, 20, 555/2), end = c(555/2, 400, 555/2), radius=50,
                      material = material_list(diffuse="dodgerblue"))) %>%
  rasterize_scene(light_info = directional_light(c(0.5,0.5,-1)))
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,0)` fov `40` .
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }
