Render a 3D scene made out of lines using a software rasterizer.

rasterize_lines(
  line_info = NULL,
  filename = NA,
  width = 800,
  height = 800,
  alpha_line = 1,
  parallel = TRUE,
  fov = 20,
  lookfrom = c(0, 0, 10),
  lookat = NULL,
  camera_up = c(0, 1, 0),
  color = "red",
  background = "black",
  debug = "none",
  near_plane = 0.1,
  far_plane = 100,
  block_size = 4,
  ortho_dimensions = c(1, 1),
  bloom = FALSE,
  antialias_lines = TRUE
)

Arguments

line_info

The mesh object.

filename

Default `NULL`. Filename to save the image. If `NULL`, the image will be plotted.

width

Default `400`. Width of the rendered image.

height

Default `400`. Width of the rendered image.

alpha_line

Default `1`. Line transparency.

parallel

Default `TRUE`. Whether to use parallel processing.

fov

Default `20`. Width of the rendered image.

lookfrom

Default `c(0,0,10)`. Camera location.

lookat

Default `NULL`. Camera focal position, defaults to the center of the model.

camera_up

Default `c(0,1,0)`. Camera up vector.

color

Default `darkred`. Color of model if no material file present (or for faces using the default material).

background

Default `white`. Background color.

debug

Default `"none"`.

near_plane

Default `0.1`.

far_plane

Default `100`.

block_size

Default `4`.

ortho_dimensions

Default `c(1,1)`. Width and height of the orthographic camera. Will only be used if `fov = 0`.

bloom

Default `FALSE`. Whether to apply bloom to the image. If `TRUE`, this performs a convolution of the HDR image of the scene with a sharp, long-tailed exponential kernel, which does not visibly affect dimly pixels, but does result in emitters light slightly bleeding into adjacent pixels.

antialias_lines

Default `TRUE`. Whether to anti-alias lines in the scene.

Value

Rasterized image.

Examples

# \dontshow{
options("cores"=1)
# }
# \donttest{
#Generate a cube out of lines
cube_outline = generate_line(start = c(-1, -1, -1), end = c(-1, -1, 1)) %>%
  add_lines(generate_line(start = c(-1, -1, -1), end = c(-1, 1, -1))) %>%
  add_lines(generate_line(start = c(-1, -1, -1), end = c(1, -1, -1))) %>%
  add_lines(generate_line(start = c(-1, -1, 1), end = c(-1, 1, 1))) %>%
  add_lines(generate_line(start = c(-1, -1, 1), end = c(1, -1, 1))) %>%
  add_lines(generate_line(start = c(-1, 1, 1), end = c(-1, 1, -1))) %>%
  add_lines(generate_line(start = c(-1, 1, 1), end = c(1, 1, 1))) %>%
  add_lines(generate_line(start = c(1, 1, -1), end = c(1, -1, -1))) %>%
  add_lines(generate_line(start = c(1, 1, -1), end = c(1, 1, 1))) %>%
  add_lines(generate_line(start = c(1, -1, -1), end = c(1, -1, 1))) %>%
  add_lines(generate_line(start = c(1, -1, 1), end = c(1, 1, 1))) %>%
  add_lines(generate_line(start = c(-1, 1, -1), end = c(1, 1, -1)))

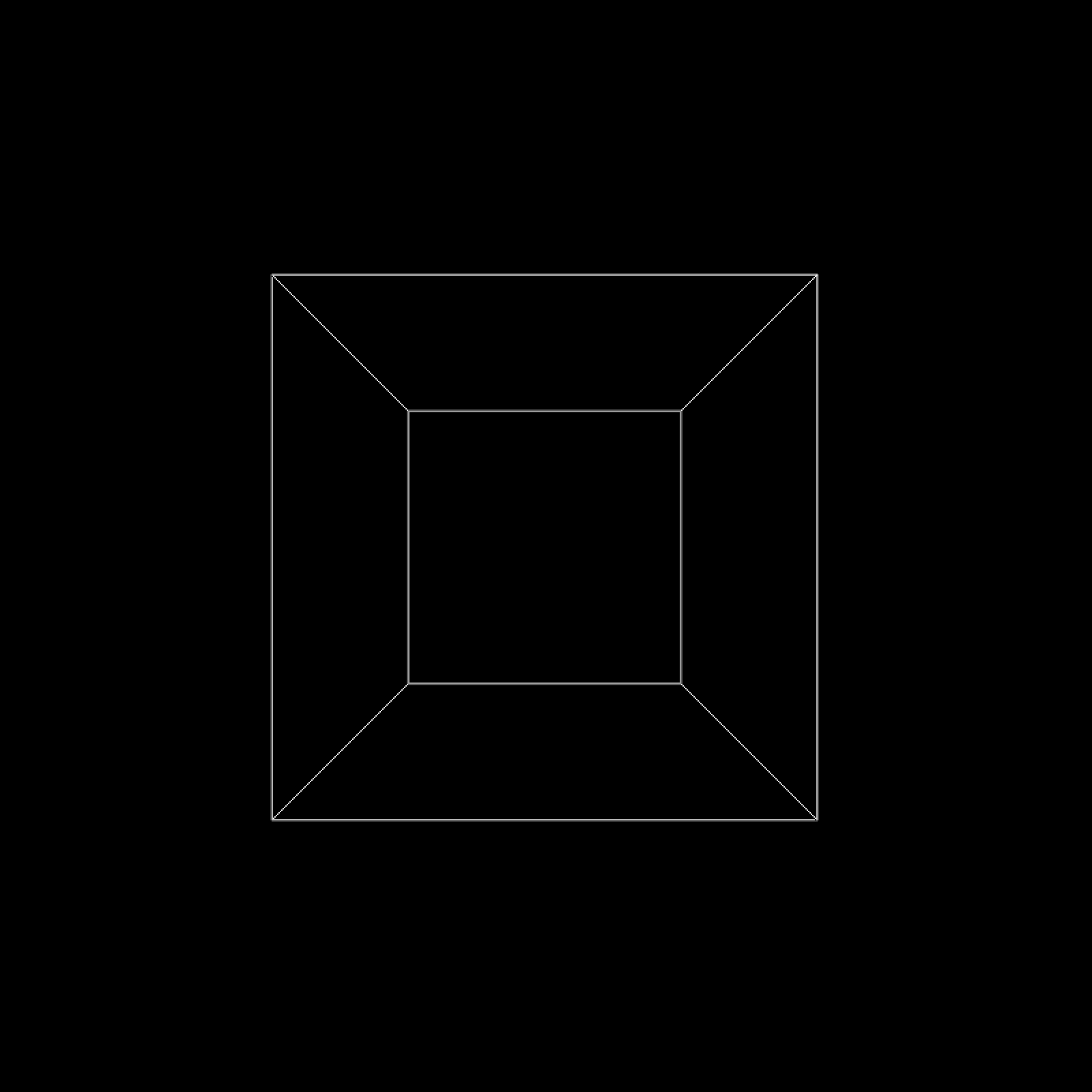

rasterize_lines(cube_outline,fov=90,lookfrom=c(0,0,3))
#> Setting `lookat` to: c(0.00, 0.00, 0.00)
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’

#Scale the cube uniformly
scaled_cube = color_lines(scale_lines(cube_outline,scale=0.5),color="red")

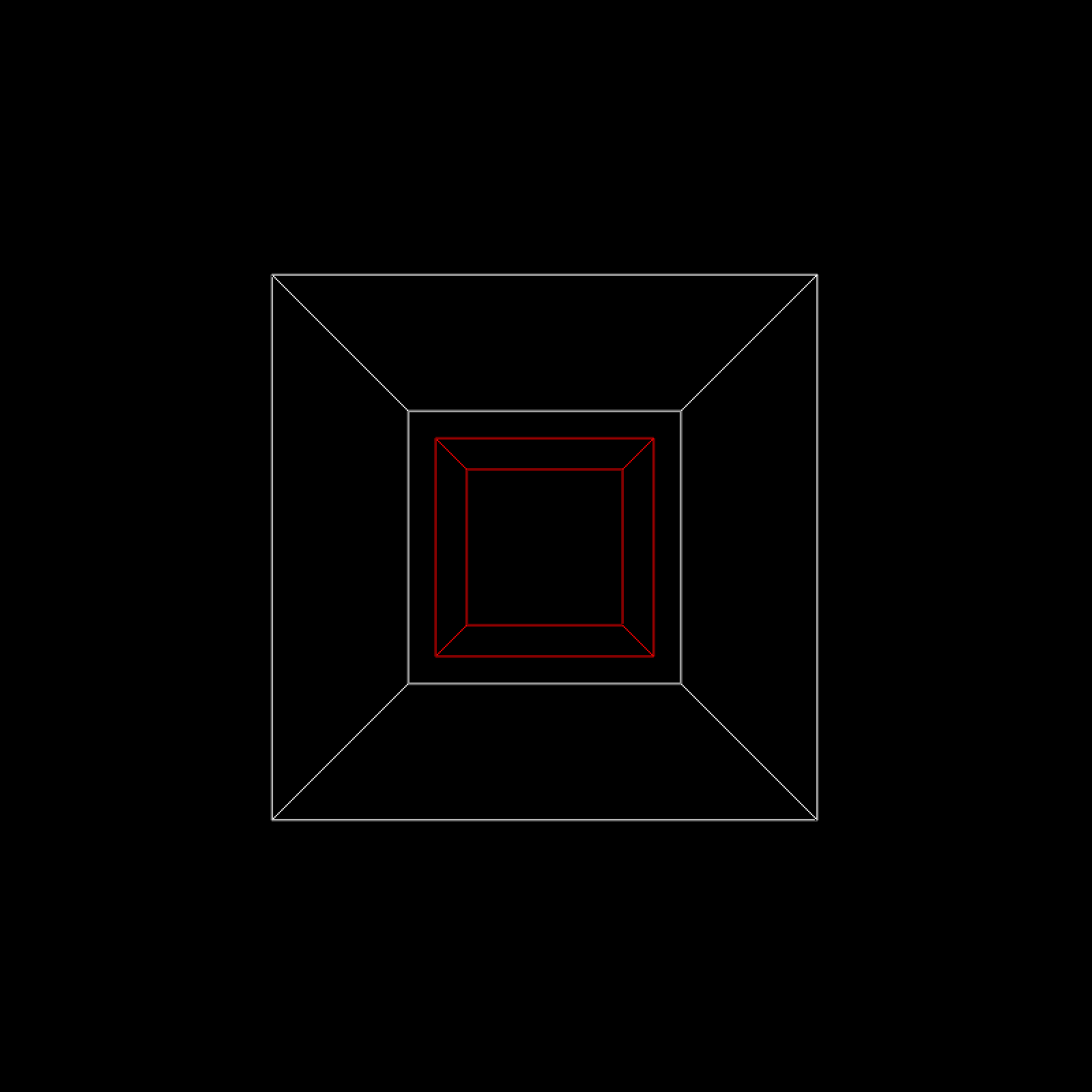

rasterize_lines(add_lines(cube_outline,scaled_cube),fov=90,lookfrom=c(0,0,3))
#> Setting `lookat` to: c(0.00, 0.00, 0.00)
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’

#Scale the cube non-uniformly

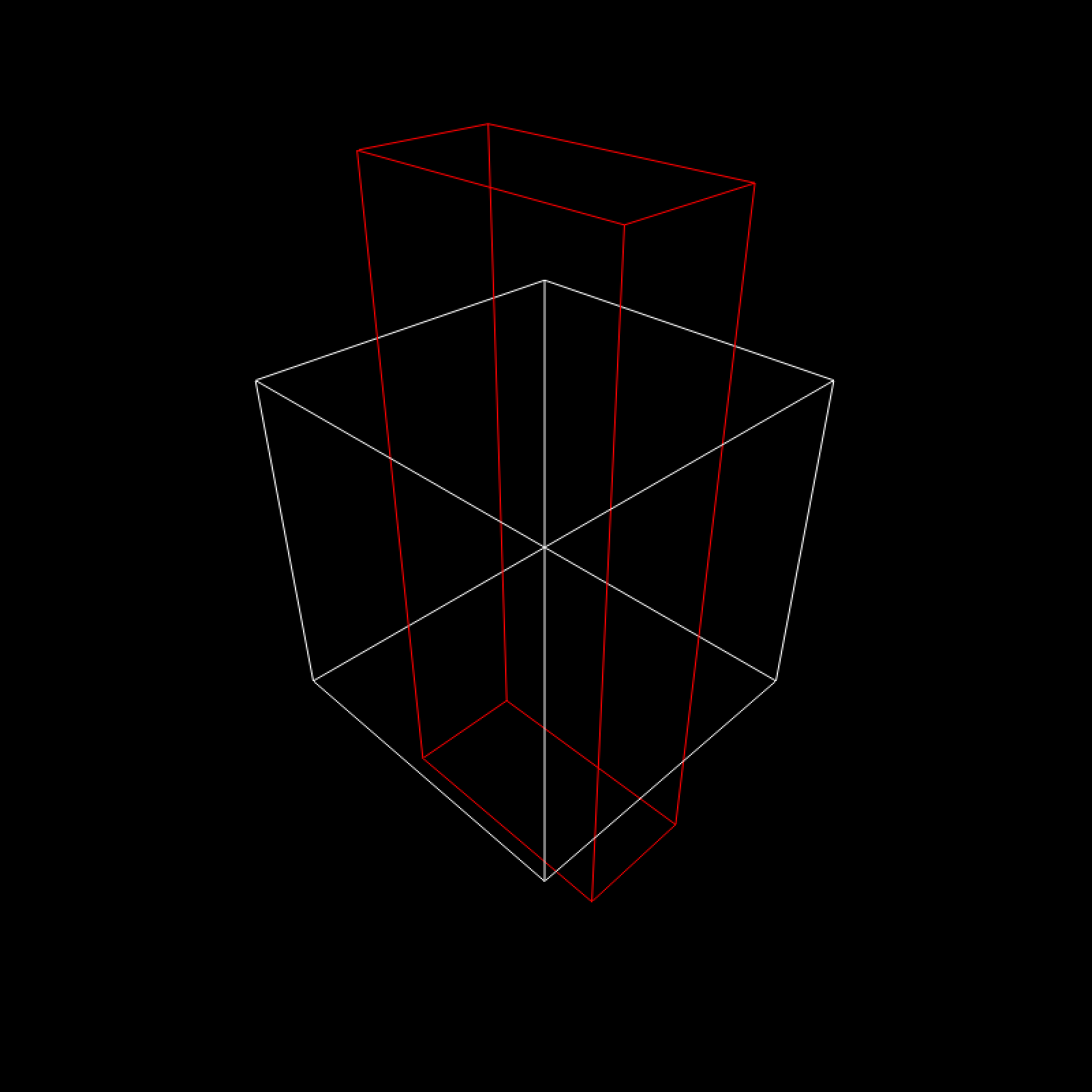

scaled_cube = color_lines(scale_lines(cube_outline,scale=c(0.8,2,0.4)),color="red")
rasterize_lines(add_lines(cube_outline,scaled_cube),fov=60,lookfrom=c(3,3,3))
#> Setting `lookat` to: c(0.00, 0.00, 0.00)
#> Error in loadNamespace(i, c(lib.loc, .libPaths()), versionCheck = vI[[i]]): there is no package called ‘terra’
# }
